Safety Signs

Mandatory Instruction

JALITE photoluminescent mandatory fire safety notices are sited to instruct occupants of necessary actions to protect their life safety, according to BS ISO 3864-1:2011. JALITE mandatory fire safety notices such as fire door keep shut and fire action notices allow responsible persons to manage fire risk assessment requirements, by informing occupants, especially visitors of emergency evacuation procedures and practices.

JALITE Fire door safety signs such as fire exit keep clear signs, are sited to allow evacuees to safely escape from the building, especially during an emergency evacuation. JALITE fire door safety signs therefore reduce risks that develop from a blocked fire exit during an incident of fire.

JALITE photoluminescent mandatory safety notices such as our wear mask sign, wear eye protection sign, and fire action notices, are designed with integrated graphical symbols as per BS EN ISO 7010.

JALITE photoluminescent mandatory safety notices are proven to instil familiarity of emergency and health and safety procedures, in all lighting conditions.

Quick overview

Characteristics

BS ISO 17398:2004 - Safety colours and safety signs. Classification performance and durability of signs.

This International Standard specifies requirements for a performance-related classification system for safety signs according to expected service environment, principal materials, photometric properties, means of illumination, fixing methods and surface. Performance criteria and test methods are specified in this International Standard so that properties related to durability and expected service life can be characterized and specified at the time of the product’s delivery to the purchaser.

DIN 67 510 Part 1: 2020 - Phosphorescent pigments and products - measurement and marking at the producer.

This standard applies to the measurement and classification by the manufacturer of phosphorescent pigments and the phosphorescent products made from them, for example for marking escape routes and hazards, in buildings, underground thoroughfares, on aircraft and ships, for marking equipment, fittings, utensils, working clothing and safety clothing. This standard specifies a series of conditions for testing the change in luminance over time and for identifying the tested phosphorescent products.

BS ISO 3864-1:2011 - Graphical symbols - Safety colours and safety signs - Part 1: Design principles for safety signs and safety markings.

This part of ISO 3864 establishes the safety identification colours and design principles for safety signs and safety markings to be used in workplaces and in public areas for the purpose of accident prevention, fire protection, health hazard information and emergency evacuation. It also establishes the basic principles to be applied when developing standards containing safety signs.

BS ISO 3864-3:2012 - Graphical symbols - Safety colours and safety signs - Part 3: Design principles for graphical symbols for use in safety signs.

BS ISO 3864-4:2011 - Graphical symbols - Safety colours and safety signs - Part 4: Colorimetric and photometric properties of safety sign materials.

This part of ISO 3864 establishes the colorimetric and photometric requirements and test methods for the colours of safety signs to be used in workplaces and public areas. It provides the colorimetric and photometric specifications for the named safety and contrast colours prescribed in ISO 3864-1. The physical requirements that safety signs have to meet are primarily related to daytime colour and normally lit environments. This part of ISO 3864 also includes the colorimetric requirements and test methods for safety signs and phosphorescent material which also operate in unlit environments.

BS 5499-10:2014 - Guidance for the selection and use of safety signs and fire safety notices

This part of BS 5499 provides guidance on how to select, install, position and maintain safety signs conforming to BS ISO 3864‑1 and BS EN ISO 7010, excluding escape route signs, to present specific safety information. Fire safety notices are also covered in Annex A.

BS EN ISO 7010:2020 - Graphical symbols - Safety colours and safety signs - Registered safety signs.

BS EN ISO 7010 ensures the appearance of safety signs is consistent and the meaning clear wherever safety signs related to people are needed. The shape and colour of each safety sign conforms to the design principles in ISO 3864-1 and the design of the graphical symbols conforms to the design principles in ISO 3864-3. These safety signs are intended for use only where there is a risk to people. They may appear in workplaces and public areas, safety manuals and notices, product labelling and escape and evacuation plans as appropriate.

UNIQUE PRODUCT CODES

Each JALITE sign has a unique code number, after the sign code you will see the size code as shown in the example below.

Code Example: 435T

Sign Code	Size Code
435	T

SIGN TYPES
JALITE offer a range of sign types, single sided, panoramic signs, double-sided wall mounted signs and double-sided hanging signs.

Click Here for More Info

VIEWING DISTANCE
The expected viewing distance of a safety sign is described according to the Z factor. The Z factor is the ratio of the viewing distance divided by the sign height (graphical symbol height plus geometric shape according to BS EN ISO 7010:2020 image) - Direct line of sight.

Click Here for More Info

SAFETY SIGNS COLOURS & SHAPES
The standard BS ISO 3864-1:2011 specifies a system of geometric shapes and safety colours for use with the appropriate graphical symbols to produce safety signs.

Click Here for More Info

MATERIAL CODES
The following materials are used to manufacture JALITE products.

*MATERIAL*	*PREFIX*	*SUFFIX*
JALITE AAA photoluminescent rigid PVC	~	R
White rigid PVC	W	R

Code Example: White exterior rigid pvc - WX6420ER

Prefix	Code	Size	Suffix
WX	6420	E	R

CODE SIZE’S FOR SIGNS Note: Please check sign for available sizes.

CODE	SIZE (mm)
A	100 x 100
C	150 x 150
D	150 x 200
E	200 x 200
Q	300 x 300
O	80mm diameter

JALITE framing solutions are specifically manufactured for JALITE signage, especially escape route signage. Our frames enable Class C+ luminance performance of JALITE signs, whilst protecting the safety signs from damage.

JALITE offer a range of frames for safety signs with options for aluminium frames or plastics depending on the type and size of safety sign.

JALITE frames are robust and an aesthetically pleasant housing for all your safety sign requirements.

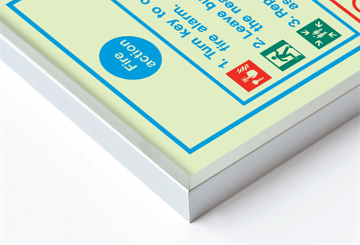

Fire action notice in frame
